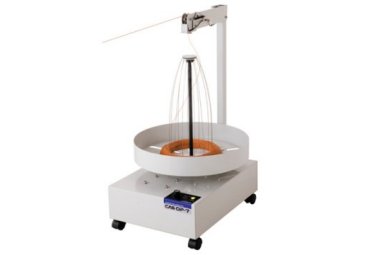

OP-7 automatic winding wire feeder
OP-7 Automatic winding wire supply
Specifications
| Model | OP-7 | |||
| Wire Diameter | max φ6mm ※Depend on the wire type. | |||
| Wire Weight | max 10kg | |||
| Power Supply | AC100 or 220V 50/60Hz | |||
| Power Consumption | rated : 5W / max : 206W | |||
| Dimension | 480 x 610 x 855mm | |||
| Weight | 28kg | |||
Utility wire feeder
OP-7 is the succeeding model of OP-2 and OP-3 that a wire feeder for winded wire that is equipped with a rotation roller sensor. The wire table turns when roller sensor rotates by wire feeding without connecting to wire processing machine, so it can use a lot of kinds of machine.
