CPF-05A automatic wire prefeeder

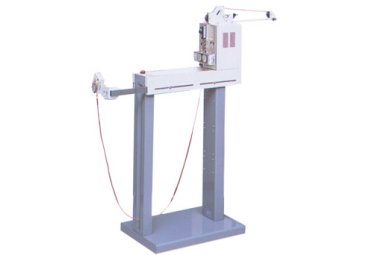

CPF-05A automatic wire prefeeder
CPF-05A Automatic wire prefeeder
Specifications
Model | CPF-05A | |||
Wire Size | AWG#14 ~ #28 ※Depend on the wire type. | |||
Power Supply | AC100 or 220V 50/60Hz | |||
Power Consumption | rated : 30W / max : 130W | |||
Dimension | 420 x 1,420 x 1,350mm | |||
Weight | 40kg |
High performance wire prefeeder
CPF-05A has integrated micro computer, that regulates the appropriate wire feeding speed up to 3.3m/sec by getting information about wire cutting length from wire processing machine, and It controls the slack of wire between wire and wire processing machine, so It prevents tension of wire supply.
