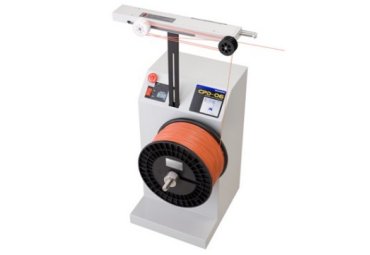

CPD-06 automatic bobbin wire feeding machine
CPD-06 Automatic bobbin wire feeding machine
Movie
Specifications
| Model | CPD-06 | |||
| Wire Size | AWG#18 ～ #40 ※Depend on the wire type. | |||
| Bobbin Wire Weight | max 20kg | |||
| Bobbin Wire Width | max 200mm | |||
| Bobbin Wire Diameter | max φ600mm | |||
| Bobbin Hole Diameter | φ20 ～ 40mm | |||
| Drive | Stepping motor | |||
| Power Supply | AC200 ～ 240V 50/60Hz | |||
| Power Consumption | rated : 12W / max : 70W | |||
| Dimension | 450 x 545 x 1,005mm | |||
| Weight | 35kg | |||
High performance wire feeder
CPD-06 has integrated micro computer, that computes the balance of diameter of bobbin wire and gets information about wire cutting length from wire processing machine of KODERA, and then it regulates the appropriate wire feeding speed.
