CASTUGNON C556SZ cut and strip and crimp and wire seal and solder machines for wire

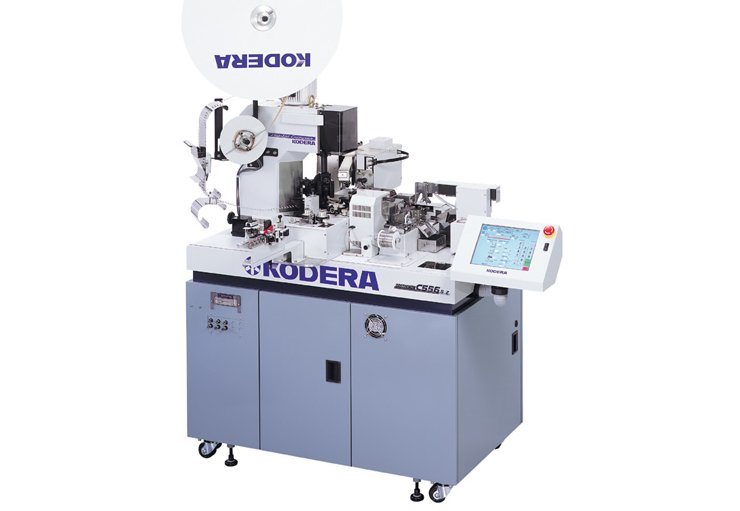

C556SZ Crimp & wire seal & solder machine

C556SZ
castugnon c556sz processing

High performance wire processor


C556SZ process front end crimping and wire seal insert and rear end twisting and soldering automatically.

Mixed C555SZ and C550SZTS


C556SZ is the mixed machine, front end is based on C555SZ that installed DF-01 wire seal insert unit and rear end is based on C550SZTS that installed CASY-645 wire twist unit and SUA wire solder unit. so it realize a high performance.

Equipped CHA and CFM


It is equipped with CHA Crimp height auto adjust unit and CFM Crimp force monitor at front end crimper same as other C55X series. so it realize high quality and usefulness.

CFM Crimp force monitor   ※test data sample

cfm

No crimping terminal


When crimper crimp without crimping terminal, the crimp pressure does not break out. Then the curve is displayed flat.
cfm

Cutting conductor


If the machine cut wire conductor more than 10% when stripping a wire insulation by blade, the crimping pressure is lower. Then the curve is displayed lower at the top.
cfm

Crimping insulation


If crimper crimp with wire insulation together when the wire position is deep to crimp terminal, the crimping pressure is up. Then the curve is displayed up from a beginning to the top.

SUA Wire soldering unit

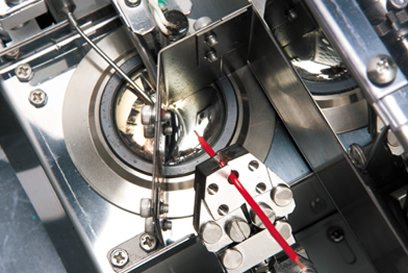

sua soldering unit

CS-055 Rotating solder pot

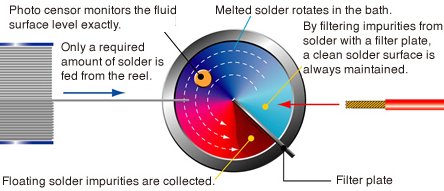

Kodera original solder bath is always rotate when solder temperature is up to target degree, and there is a filter plate for cleaning the solder surface in the soldering pot. so It can always keep clean the solder surface.

sua soldering unit

DF-01 Wire seal supply and insert unit

DF-01 Wire seal supply and insert unit

Wire seal supply Disc feeder

Kodera original disc feeder perform stable wire seal supply from small wire seal like a 025 type to big wire seal like a 090 type than straight feeder as other wire seal machine.

Wire seal insert Carry pin & chuck

After supply a wire seal by disc feeder, Carry pin pick a wire seal and Carry chuck that was made to from the shape of wire seal grip a wire seal from Carry pin certainly, and then Carry chuck insert a wire seal to a cutting wire.

Specifications

Model C556SZ
Processing Variation Front end : Cut, Strip, Terminal Crimping, Wire seal insert
Rear end : Cut, Strip, Twisting, Soldering
Stripping Length Front : 0.1mm ~30mm / Rear : 0.1 ~ 30mm
Cutting Length max 99,999mm
Cutting Tolerance ±( 0.2 + 0.002 × L )mm
  Minimum Processing Length   L ≧ 25mmminimum length
Wire Size AWG #12(3.5sq) ~ #32(0.03sq)   ※Depend on the wire type.
Wire Type AVSS, AVS, AV, CAVUS, KV, KIV, UL, Teflon, etc
Crimper Capacity 2.5ton
Crimper Stroke 30mm or 40mm
Terminal Type Open barrel side feed/end feed type    ※max 27mm
Power Supply AC200 or 220 or 240V    50/60Hz
Power Consumption rated : 560W / max : 1,800W
Air Supply 55Nl/min   0.5MPa
Equipment   CFM Crimp force monitor, CHA Crimp height auto adjust unit,
DF-01 Wire seal insertion unit, CASY-645 Wire twist unit,
SUA Wire soldering unit
Dimension 1,120 x 765 x 1,550mm
Weight 385kg
