C551HXA cut and strip and crimp machine for wire high speed type

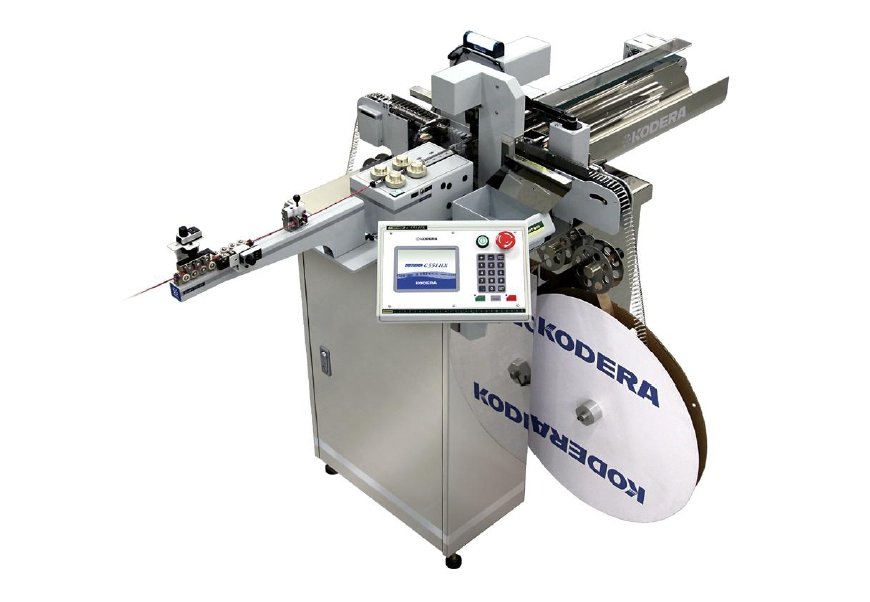

C551HXA cut and strip and crimp machine for wire high speed type
C551HXA Automatic wire crimping machine
HX Crimping Applicator
New type Terminal Applicator
HX Applicator is compact and light design than normal crimping Applicator. It have an IC Tag built in a applicator, and it transfer the Crimping ID data to a machine automatically when operator put applicator in a Crimper, then almost all setting up is finished.
| Crimper ID | 1.Terminal information 2.Wire information 3.core diameter 4.Crimp height 5.Crimp force 6.Strip length 7.Crimp position 8.Shot number (max 8 digits) 9.Trip shot number (max 7 digits) 10.Administrator 11.Lot No. |
|||
| Anvil ID | 1.Terminal information 2.Shot number (max 8 digits) 3.Trip shot number (max 7 digits) 4.Administrator 5.Lot No. |
|||
Movie
Specifications
| Model | C551HXA | |||
| Processing Variation | Front end : Cut, Strip, Terminal Crimping Rear end : Cut, Strip, Terminal Crimping |
|||
| Stripping Length | Front / Rear : 0.1 ～ 7mm | |||
| Cutting Length | max 99,999mm | |||
| Cutting Tolerance | ±( 0.2 ＋ 0.002 × L )mm | |||
| Minimum Processing Length | L ≧ 62mm |
|||
| Wire Size | AWG #18(0.75sq) ～ #32(0.03sq) ※Depend on the wire type. | |||
| Wire Type | AVSS, AVS, AV, CAVUS, KV, KIV, UL, Teflon, etc | |||
| Crimper Capacity | 1.2ton | |||
| Terminal Type | Open barrel side feed type only ※max 27mm | |||
| Power Supply | AC100 ～ 240V 50/60Hz | |||
| Power Consumption | rated : 120W / max : 760W | |||
| Air Supply | 18Nl/min 0.5MPa | |||
| Equipment | CFM Crimp force monitor, ID tag, Data send/receive device | |||
| Optional Equipment | CPD-06 Bobbin Wire Supply Unit | |||
| Dimension | 620 x 550 x 1,210mm | |||
| Weight | 193kg | |||
High speed crimping machine
C551HXA is the fastest fully automatic wire crimping machine. The speed is more than double amount of production than other automatic crimping machine, and also the quality is keeping good with Crimp Force Monitor and HX applicator especially for small wire and crimping terminal.
