CASTUGNON C550SZTS cut and strip and crimp and solder machine for wire

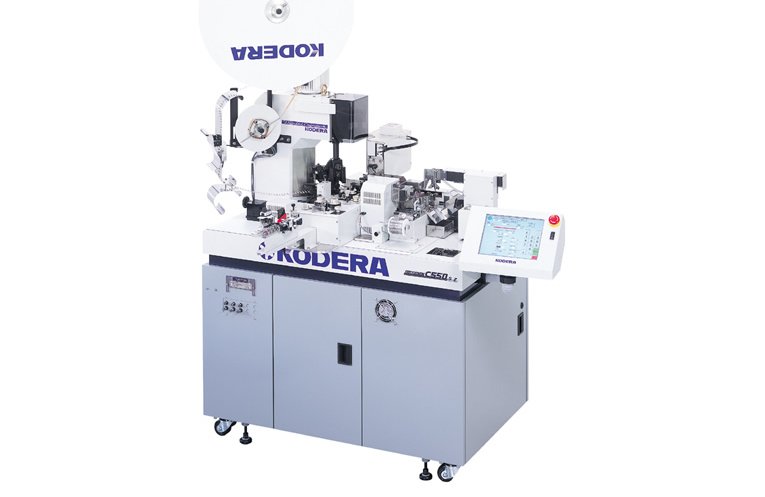

CASTUGNON C550SZTS cut and strip and crimp and solder machine for wire
C550SZTS Wire crimping and dipping machine
CFM Crimp force monitor ※test data sample
No crimping terminal
When crimper crimp without crimping terminal, the crimp pressure does not break out. Then the curve is displayed flat.
Cutting conductor
If the machine cut wire conductor more than 10% when stripping a wire insulation by blade, the crimping pressure is lower. Then the curve is displayed lower at the top.
Crimping insulation
If crimper crimp with wire insulation together when the wire position is deep to crimp terminal, the crimping pressure is up. Then the curve is displayed up from a beginning to the top.
SUA Wire soldering unit
CS-055 Rotating solder pot
Kodera original solder bath is always rotate when solder temperature is up to target degree, and there is a filter plate for cleaning the solder surface in the soldering pot. so It can always keep clean the solder surface.
Specifications
| Model | C550SZTS | |||
| Processing Variation | Front end : Cut, Strip, Terminal Crimping Rear end : Cut, Strip, Twisting, Soldering |
|||
| Stripping Length | Front : 0.1mm ～30mm / Rear : 0.1 ～ 30mm | |||
| Cutting Length | max 99,999mm | |||
| Cutting Tolerance | ±( 0.2 ＋ 0.002 × L )mm | |||
| Minimum Processing Length | L ≧ 25mm |
|||
| Wire Size | AWG #12(3.5sq) ～ #32(0.03sq) ※Depend on the wire type. | |||
| Wire Type | AVSS, AVS, AV, CAVUS, KV, KIV, UL, Teflon, etc | |||
| Crimper Capacity | 2.5ton | |||
| Crimper Stroke | 30mm or 40mm | |||
| Terminal Type | Open barrel side feed/end feed type ※max 27mm | |||
| Power Supply | AC200 or 220 or 240V 50/60Hz | |||
| Power Consumption | rated : 510W / max : 1,650W | |||
| Air Supply | 45Nl/min 0.5MPa | |||
| Equipment | CFM Crimp force monitor, CHA Crimp height auto adjust unit, CASY-645 Wire twist unit, SUA Wire soldering unit |
|||
| Dimension | 1,120 x 765 x 1,550mm | |||
| Weight | 355kg | |||
High quality soldering machine
C550SZTS process front end crimping and rear end twisting and soldering automatically with high quality.
CASY-645 Wire twisting unit
CASY-645 twist a wire conductor by K blade that grip and slide a wire insulation at half strip by upper and lower flat blade. It can adjust from soft and hard on control panel.
SUA Wire solder unit
CS-055 rotating soldering bath and sponge roller fluxing unit process beautiful soldering than other machine.
Equipped CHA and CFM
