CASTUGNON C550HX cut and strip and crimp and solder machine for wire high speed type
CASTUGNON C550HX cut and strip and crimp and solder machine for wire high speed type
C550HX Auto crimp and soldering machine
![c550hx](img/c550hx-1.jpg)
HX Terminal Applicator
![hx_applicator.jpg](img/hx_applicator.jpg)
New type Terminal Applicator
HX Applicator is compact and light design than normal crimping Applicator. It have an IC Tag built in a applicator, and it transfer the Crimping ID data to a machine automatically when operator put applicator in a Crimper, then almost all setting up is finished.
Crimper ID | 1.Terminal information 2.Wire information 3.core diameter 4.Crimp height 5.Crimp force 6.Strip length 7.Crimp position 8.Shot number (max 8 digits) 9.Trip shot number (max 7 digits) 10.Administrator 11.Lot No. |
|||
Anvil ID | 1.Terminal information 2.Shot number (max 8 digits) 3.Trip shot number (max 7 digits) 4.Administrator 5.Lot No. |
Wire fluxing and soldering unit
![c550hx solder pot](img/c550hx_solder.jpg)
Rotating soldering pot
Kodera original solder bath is always rotate when solder temperature is up to target degree, and there is a filter plate for cleaning the solder surface in the soldering pot, so It can always keep clean the solder surface, and it suppress the vibration by separate structure.
![c550hx flux unit](img/c550hx_flux.jpg)

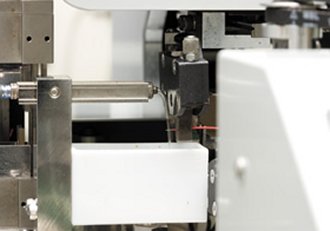

Circulation fluxing unit
It is very important for wire soldering to put flux to a wire certainly, so Kodera adopted the new type fluxing unit on C550HX. Circulation fluxing unit always circulate flux and drop flux like a waterfall at point of putting flux to wire.
Movie
Specifications
Model | C550HX | |||
Processing Variation | Front end : Cut, Strip, Terminal Crimping Rear end : Cut, Strip, Twisting, Soldering |
|||
Stripping Length | Front : 0.1mm ~34.5mm / Rear : 0.1 ~ 5.5mm | |||
Cutting Length | max 99,999mm | |||
Cutting Tolerance | ±( 0.1 + 0.0005 × L )mm | |||
Minimum Processing Length | L ≧ 19mm![]() |
|||
Wire Size | AWG #18 (0.75sq) ~ #32 (0.03sq) ※Depend on the wire type. | |||
Wire Type | AVSS, AVS, AV, CAVUS, KV, KIV, UL, Teflon, etc | |||
Crimper Capacity | 1.2ton | |||
Terminal Type | Open barrel side feed type only ※max 27mm | |||
Power Supply | AC100 ~ 240V 50/60Hz | |||
Power Consumption | rated : 330W (100V) / max : 850W (100V) | |||
Air Supply | 18Nl/min 0.5MPa | |||
Equipment | CFM Crimp force monitor, ID tag, Data send/receive device, Wire Twisting Unit, Wire Soldering Unit |
|||
Optional Equipment | CPD-06 Bobbin Wire Supply Unit | |||
Dimension | 700 x 550 x 1,210mm | |||
Weight | 190kg |
High speed wire solder machine
C550HX is the fastest automatic wire crimp and twisting and soldering machine. C550HX implement beautiful soldering and high productivity with equiped new type twist unit flux and solder unit, and also implement stable crimping by Crimp force monitor and HX terminal applicator with the result in C551HX.
