CASTING C373A/CSL-503/CMS-801A2 cut and strip machines for wire and cable

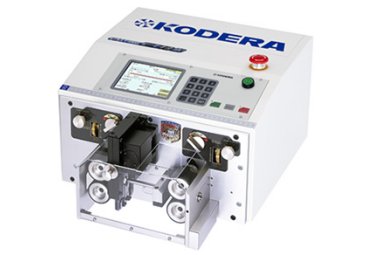

C373A Wire cut and strip machine
Optional equipment
CSL-503 Flat Cable Slitting Unit
C373A with CSL-503 can cut, strip and slit flat cable up to 40mm wide and total slitting length up to 200mm, and can adjust the ratio of front side and rear side slitting length by easy setting on control panel.
CMS-801A2 Mid Stripping Unit
C371A with CMS-801A2 can strip at middle of wire with a outer diameter of up to 8φ, and up to 10 different position by easy setting on control panel. It can perform certain processing by 4 mid stripping blades.
Processing Capacity
| Total Length | Processing Capacity |
|||
| 100mm | 2,300 pcs/hour |
|||
| 200mm | 2,100 pcs/hour |
|||
| 300mm | 1,950 pcs/hour |
|||
| 500mm | 1,700 pcs/hour |
|||
| 1,000mm | 1,300 pcs/hour |
|||
| 2,000mm | 850 pcs/hour |
|||
| 3,000mm | 650 pcs/hour |
|||
Front/Rear strip length 3mm, Speed 9, wire UL1007/AWG#22, normal wire mode
Specifications
| Model | C373A | |||
| Stripping Length | Front/Rear : 0.1 ～ 47.9mm | |||
| Cutting Length | 0.1 ～ 99,999mm | |||
| Cutting Tolerance | ±( 0.1 ＋ 0.0005 × L )mm | |||
| Minimum Processing Length | L ≧ 50mm |
|||
| Wire Size | AWG #2(30sq) ～ #28(0.08sq) ※Depend on the wire type. | |||
| Wire Diameter | max φ11mm ※Depend on the wire type. | |||
| Wire Type | AVSS, VSF, IV, KV, UL, Teflon, etc | |||
| Power Supply | AC100 ～ 240V 50/60Hz | |||
| Air Supply | 9Nl/min 0.5MPa | |||
| Optional equipment | CSL-503 Slitting Unit, CMS-801A2 Mid Stripping Unit | |||
| Dimension | 430 x 510 x 265mm | |||
| Weight | 33kg | |||
Wide range
C373A can process the wide range from small to big wires and cables. It keep the quality for small wires as same as C371A, and more high power than it. It is a new model from C353, C373.
Optional equipment available
C373A can attach the optional Flat Cable Slit Unit CSL-503, and Mid Strip Unit CMS-801A2.
C373AF for Flat Cable
C373AF is the model for flat cable, based on C373A. It can process flat cable up to 40mm wide.
