CASTING C372A/CPF-02B/CCS-02 corrugated tube cutter
CASTING C372A/CPF-02B/CCS-02 corrugated tube cutter

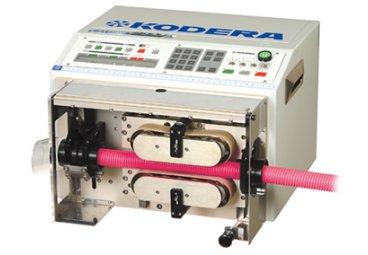

C372A Corrugated tube cutting machine

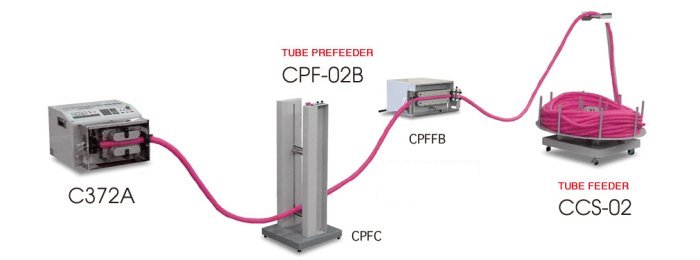

C372A with CPF-02B + CCS-02
Movie
Processing Capacity
| Total Length | Processing Capacity |
|||
| 50mm | 6,600 pcs/hour |
|||
| 100mm | 6,200 pcs/hour |
|||
| 500mm | 4,050 pcs/hour |
|||
| 1,000mm | 2,700 pcs/hour |
|||
| 2,000mm | 1,600 pcs/hour |
|||
speed 7, tube diameter 11mm
Specifications
| Model | C372A | |||
| Cutting Length | 0.1 ～ 99,999mm | |||
| Tube Diameter | max φ38mm ※Depend on the tube type. | |||
| Tube Type | Corrugated tube, PVC tube, etc | |||
| Power Supply | AC100 or 110V or 220V 50/60Hz | |||
| Air Supply | 10Nl/min 0.5MPa | |||
| Optional equipment | CPF-02B (CPFC+CPFFB) Tube Prefeeder, CCS-02 Tube Feeder | |||
| Dimension | 430 x 465 x 307mm | |||
| Weight | 34kg | |||
Beautiful cutting surface
C372A can process corrugated tube cutting in a beautiful cutting surface by using common knife blade, and guide system that guide both side the blade. It is a new model from C372.
Corrugated tube supply
C372A have prepared optional corrugated tubing supply system, Tube prefeeder CPF-02B and Tube feeder CCS-02. Using these supply system with C372A, can cut Corrugated tube automatically.
