CASTING C371A/CSL-501/CMS-801A2 cut and strip and slit machine for electric wire and cable
CASTING C371A/CSL-501/CMS-801A2 cut and strip and slit machine for electric wire and cable

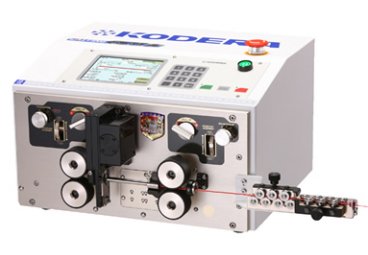

C371A Wire cut and stripping machine
Optional equipment

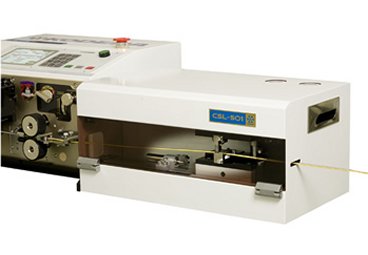

CSL-501 Flat Cable Slitting Unit
C371A with CSL-501 can cut, strip and slit flat cable up to 18mm wide and total slitting length up to 200mm, and can adjust the ratio of front side and rear side slitting length by easy setting on control panel.

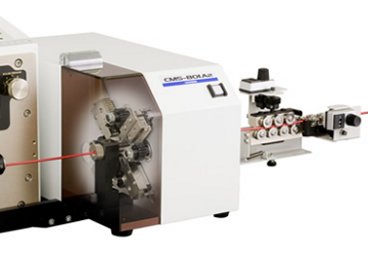

CMS-801A2 Mid Stripping Unit
C371A with CMS-801A2 can strip at middle of wire with a outer diameter of up to 8φ, and up to 10 different position by easy setting on control panel. It can perform certain processing by 4 mid stripping blades.
Movie
Processing Capacity
| Total Length | Processing Capacity |
|||
| 100mm | 7,100 pcs/hour |
|||
| 200mm | 6,550 pcs/hour |
|||
| 300mm | 6,050 pcs/hour |
|||
| 500mm | 5,250 pcs/hour |
|||
| 1,000mm | 3,950 pcs/hour |
|||
| 2,000mm | 2,700 pcs/hour |
|||
| 3,000mm | 1,950 pcs/hour |
|||
Front/Rear strip length 3mm, Speed 9, wire UL1007/AWG#22, thin wire mode
Specifications
| Model | C371A | |||
| Stripping Length | Front/Rear : 0.1 ～ 47.9mm | |||
| Cutting Length | 0.1 ～ 99,999mm | |||
| Cutting Tolerance | ±( 0.1 ＋ 0.0005 × L )mm | |||
| Minimum Processing Length | L ≧ 50mm |
|||
| Wire Size | AWG #7(10sq) ～ #28(0.08sq) ※Depend on the wire type. | |||
| Wire Diameter | max φ11mm ※Depend on the wire type. | |||
| Wire Type | AVSS, VSF, IV, KV, UL, Teflon, etc | |||
| Power Supply | AC100 ～ 240V 50/60Hz | |||
| Optional equipment | CSL-501 Slitting Unit, CMS-801A2 Mid Stripping Unit | |||
| Dimension | 430 x 420 x 270mm | |||
| Weight | 27kg | |||
Standard
C371A is the standard machine in the Casting series. It balance high speed with high power, so it is most useful machine.It is a new model from C351, C371.
Optional equipment available
C371A can attach the optional Flat Cable Slit Unit CSL-501, and Mid Strip Unit CMS-801A2.
C371AF for Flat Cable
C371AF is the model for flat cable, based on C371A. It can process flat cable up to 18mm wide.
