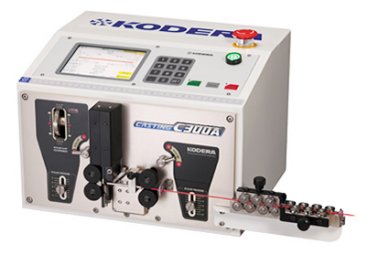

CASTING C300A wire cut and stripping machine for electric wire
CASTING C300A wire cut and stripping machine for electric wire
C300A Wire cut strip machine
Processing Capacity
| Total Length | Processing Capacity |
|||
| 100mm | 5,200 pcs/hour |
|||
| 200mm | 4,650 pcs/hour |
|||
| 300mm | 4,230 pcs/hour |
|||
| 500mm | 3,600 pcs/hour |
|||
| 1,000mm | 2,550 pcs/hour |
|||
Front/Rear strip length 3mm, Speed 9, core diameter 0.6mm, thin wire mode
Specifications
| Model | C300A | |||
| Stripping Length | Front/Rear : 0.1 ～ 20mm | |||
| Cutting Length | 0.1 ～ 99,999mm | |||
| Cutting Tolerance | ±( 0.1 ＋ 0.0005 × L )mm | |||
| Minimum Processing Length | L ≧ 20mm |
|||
| Wire Size | AWG #16(1.25sq) ～ #36(0.01sq) ※Depend on the wire type. | |||
| Wire Diameter | max φ3.5mm ※Depend on the wire type. | |||
| Wire Type | AVSS, VSF, IV, KV, UL, Teflon, etc | |||
| Power Supply | AC100 ～ 240V 50/60Hz | |||
| Optional equipment | none | |||
| Dimension | 370 x 370 x 296mm | |||
| Weight | 24kg | |||
Compact & Economy
C300A is the succeeding model of C300, and it is much better performance than C300. It is the most compact and low price machine in the Casting series.
Short wire processing
C300A can process short wire processing that minimum length 20mm without strip length.
